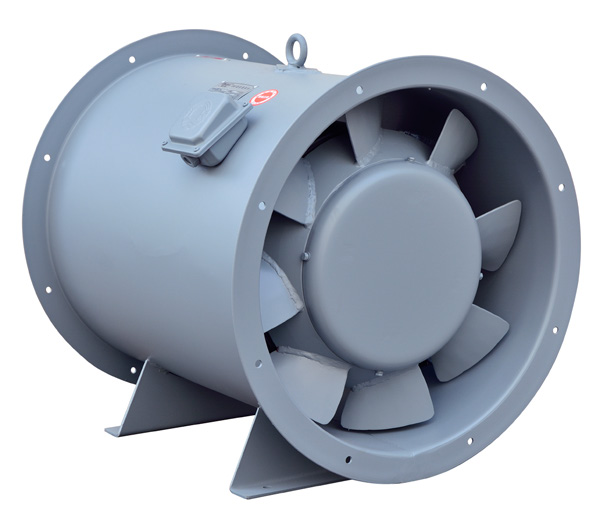

XPZ Series High-Temperature Smoke Exhaust Axial Fan
MODEL SERIES: XPZ-4 to XPZ-10 (400mm - 1000mm)
The XPZ Series is a specialized high-temperature smoke extraction axial fan certified for emergency fire safety systems. Capable of continuous operation at 280°C for over 30 minutes, it extracts toxic smoke during building fire events.
Technical Specifications
Impeller Size 400mm - 1000mm
Air Flow Rate 3,500 - 65,000 m³/h
Total Pressure 150 - 950 Pa
Fire Smoke Rating 280°C for 30+ Minutes (CNAS Certified)
Motor Class Class H High-Temperature Fire Motor
Blade Material High-Strength Heat-Treated Aluminum Alloy
Engineering Highlights
- Certified to operate continuously at 280°C for at least 30 minutes in fire emergencies
- Dual-speed motor configuration for daily dual-purpose ventilation and emergency fire extraction
- Aerodynamic twisted aerofoil blades for high pressure and air volume efficiency
Recommended Applications
- Commercial High-Rise Buildings
- Subway Stations & Tunnels
- Underground Shopping Malls & Garages
