Official Technical Catalogue
PDF 2025 Download complete PDF with full curves and dimensions.
DF Series Heavy-Duty Industrial Stand & Wall Fan
MODEL SERIES: DF500-T / DF600-T / DF650-T / DF750-T / DF820-T
The classic DF Series represents Deton's flagship heavy-duty industrial fan with over 35 years of proven reliability. Available in stand and wall configurations with diameters from 500mm to 820mm (20" to 32"), it utilizes high-torque 100% pure copper motors, heavy cast iron stabilizing bases, and precision-balanced aluminum blades for maximum air throw.
Technical Specifications
Blade Diameter 500mm / 600mm / 650mm / 750mm / 820mm
Air Volume 130 - 302 m³/min (7,800 - 18,120 m³/h)
Motor Power 150W - 350W
Speed RPM 1120 - 1400 RPM (3-Speed)
Voltage 220V - 240V / 380V, 50Hz/60Hz
Oscillation Angle 85° Wide Horizontal Oscillation
Base Type Cross Base / Heavy Round Cast Iron Base
Safety Guard Close-Mesh Finger-Proof Wire Guard
Engineering Highlights
- 100% pure copper wire wound motor with built-in thermal overload safety cutoff

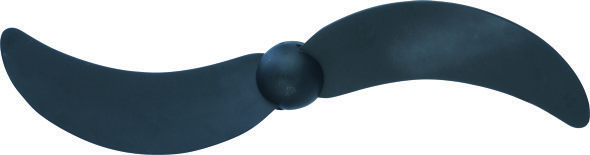

- High-pressure die-cast aluminum aerodynamic blades with dynamic balancing
- Heavy-duty cast iron base and reinforced telescopic chrome pole

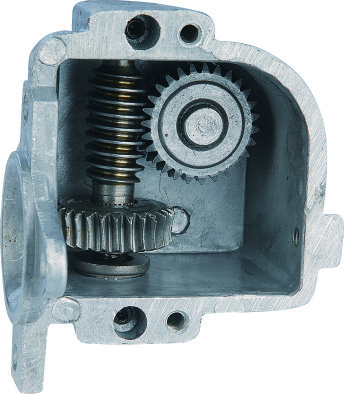

- Smooth 85-degree oscillation with tilt-up and tilt-down manual adjustment
- Wall-mount version (DF-TW) includes heavy steel anchor bracket and pull-cord switch
Recommended Applications
- Industrial Manufacturing Workshops & Assembly Lines
- Automotive Garages & Body Repair Shops
- Warehouses & Freight Loading Bays
- Outdoor Marquees, Markets & Sports Arenas
