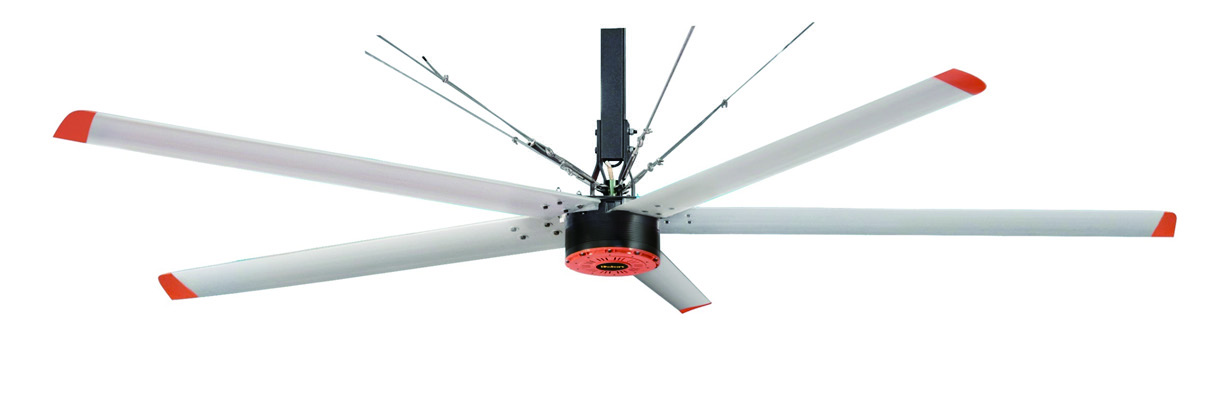

ICF Series Industrial HVLS Ceiling Fan
MODEL SERIES: ICF-7.3 / ICF-6.1 / ICF-5.5 / ICF-4.9 / ICF-3.7
The ICF Series Industrial HVLS (High Volume, Low Speed) ceiling fan is equipped with an advanced permanent magnet synchronous motor (PMSM) direct-drive system and aerospace-grade magnesium-aluminum alloy aerodynamic blades. Designed for expansive industrial spaces, it generates massive three-dimensional gentle airflow with up to 80% energy savings compared to traditional high-speed fans.
Technical Specifications
Blade Diameter 3.7m - 7.3m (12ft - 24ft)
Max Air Volume 13,800 m³/min
Motor Type PMSM Gearless Direct Drive
Rated Power 0.75 kW - 1.5 kW
Rotational Speed 10 - 55 RPM (Stepless)
Noise Level < 38 dB(A)
Cover Area Up to 1,800 m² / unit
Safety Standard 10-Tier Mechanical & Electrical Safety
Engineering Highlights
- Permanent Magnet Synchronous Motor (PMSM) with 0-gearbox maintenance-free operation
- Aviation-grade 6063-T6 aluminum alloy multi-rib internal reinforced airfoil blades
- Intelligent VFD control box with stepless speed regulation and reverse seasonal mode
- Full structural safety system including steel safety cables, anti-drop rings, and fastener locks
- Covers up to 1,800 square meters per fan with a cooling perception of 5°C - 8°C
Recommended Applications
- Logistics Centers & High-Bay Warehousing
- Automotive Assembly & Heavy Machinery Plants
- Aviation Maintenance Hangars & Railway Depots
- Food, Packaging & Chemical Processing Facilities
- Sports Stadiums & Large Indoor Arenas
