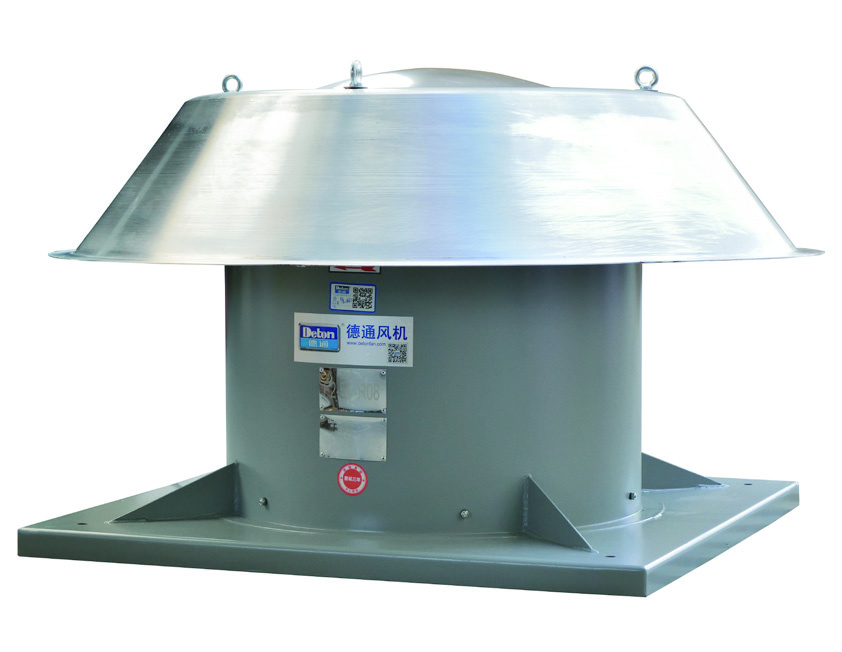

RCF Series Upblast Centrifugal Roof Fan
MODEL SERIES: RCF-250 to RCF-1000
The RCF Series is an upblast centrifugal roof exhauster engineered to discharge contaminated, greasy, or hot air vertically away from the roof surface, protecting roof membranes from grease buildup.
Technical Specifications
Fan Size 250mm - 1000mm
Air Volume 1,500 - 48,000 m³/h
Static Pressure 150 - 1,200 Pa
Discharge Type High-Velocity Vertical Upblast
Grease Collector Integrated Grease Trough with Drain Port
Engineering Highlights
- Vertical upblast discharge preventing grease and moisture accumulation on roof decks
- Motor isolated in an internally cooled compartment out of contaminated airstream
- Quick-release hood latches for effortless inspection and cleaning
Recommended Applications
- Commercial Kitchen Range Hoods
- Industrial Chemical Fume Roof Exhaust
- High-Temperature Plant Exhaust
