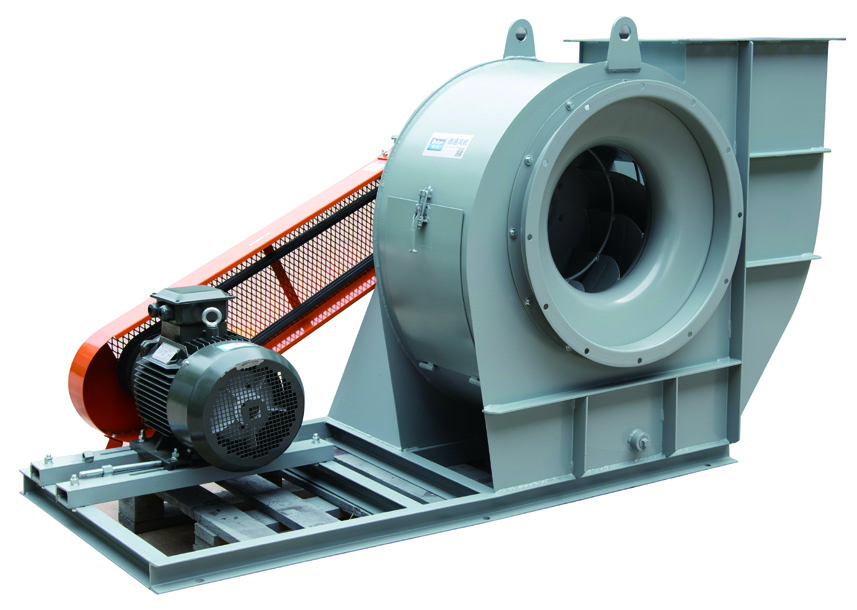

KTF Series Anti-Resistance Industrial Centrifugal Fan
MODEL SERIES: KTF-100 to KTF-1000 Series (National Level 1 Efficiency)
The KTF Series represents Deton's benchmark high-efficiency industrial centrifugal fan, officially certified to China National Level 1 Energy Efficiency. Engineered with CFD aerodynamic simulation, it delivers static pressure up to 2,500 Pa and air volume up to 80,000 m³/h with non-overloading backward-curved impellers.
Technical Specifications
Impeller Diameter 250mm - 1200mm
Air Volume 1,500 - 80,000 m³/h
Static Pressure 350 - 2,500 Pa
Efficiency Rating National Level 1 Energy Efficiency Standard
Motor Power 0.75 kW - 75.0 kW
Impeller Type Backward-Curved Anti-Resistance Aerofoil
Drive Arrangement Direct Motor Drive (Type A) / Belt Drive (Type C)
Max Operating Temp Up to 250°C Continuous
Engineering Highlights
- Officially certified National Level 1 Energy Efficiency delivering significant electrical cost reduction
- Anti-resistance aerodynamic geometry minimizing dust adhesion and pressure loss
- Laser-cut reinforced carbon steel casing with continuous robotic structural welds
- Dynamic balancing to ISO 1940 G2.5 ensuring zero vibration and extended bearing life
Recommended Applications
- Industrial Dedusting, Baghouse Filters & Cyclones
- Chemical & Pharmaceutical Exhaust Scrubbers
- Boiler Forced & Induced Draft Systems
- High-Temperature Industrial Smoke & Kiln Ventilation
