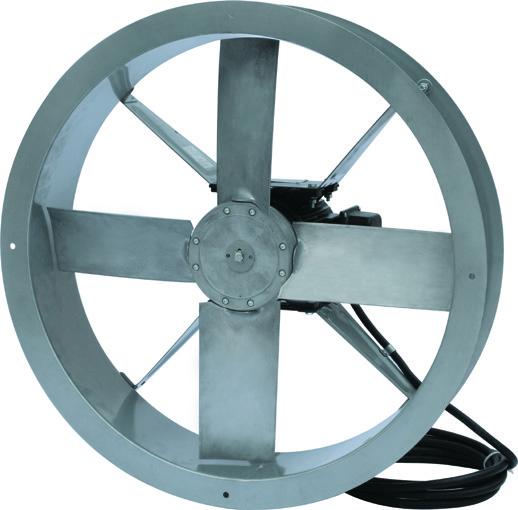

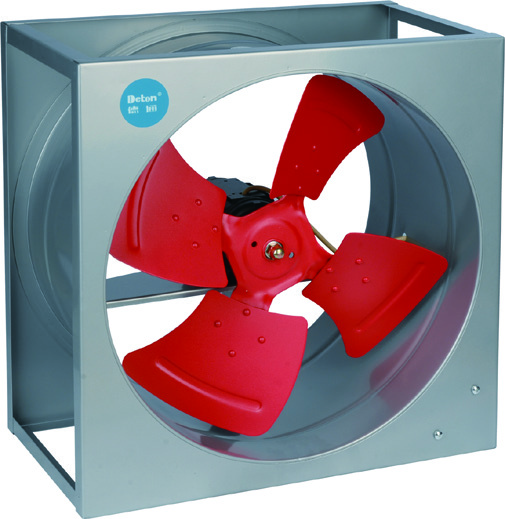

KF Series High-Temperature Oven Circulation Fan
MODEL SERIES: KF-L / KF-F Series (Up to 300°C)
The KF Series is a specialized high-temperature circulation fan engineered for industrial curing ovens, baking kilns, and drying chambers. Equipped with a long-shaft motor and heat-dissipating slinger wheel, it withstands continuous 300°C temperatures.
Technical Specifications
Max Temperature Up to 300°C (572°F) Continuous
Air Volume 800 - 8,500 m³/h
Thermal Isolation Extended Shaft with Aluminum Cooling Slinger
Motor Class Class H High-Temperature Insulation
Engineering Highlights
- Heat slinger aluminum disc dissipating high shaft temperatures away from motor bearings
- Heat-resistant stainless steel or treated carbon steel construction
- Maintains uniform internal temperature distribution inside industrial ovens
Recommended Applications
- Industrial Powder Coating Curing Ovens
- Bakery & Commercial Food Dehydrators
- Wood & Tobacco Drying Kilns
- Heat Treatment Furnaces
