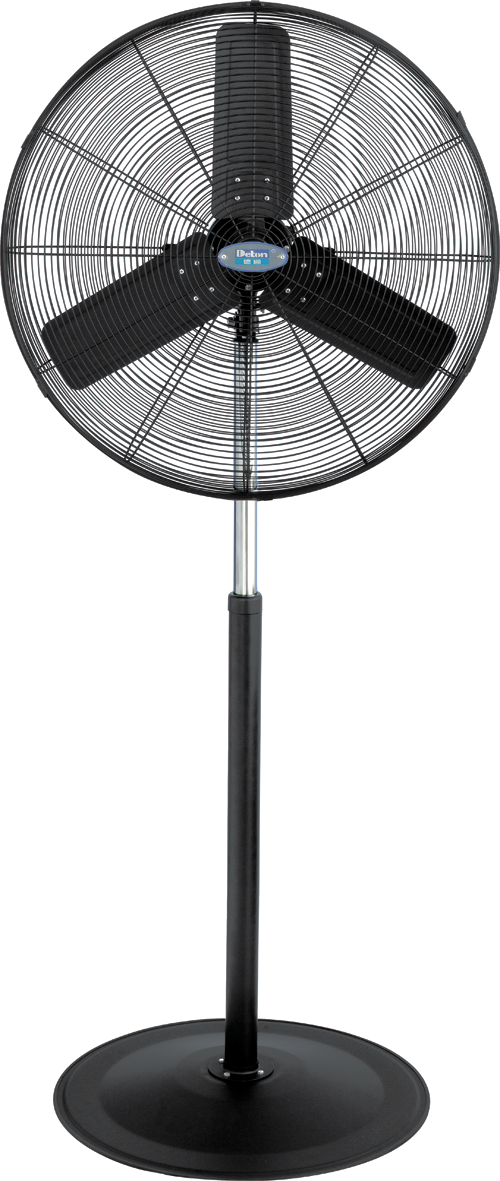

DFK Series Wide-Blade Stand & Wall Industrial Fan
MODEL SERIES: DFK600-T / DFK650-T / DFK750-T / DFK600-TW / DFK650-TW / DFK750-TW
The DFK Series features specially engineered wide-chord aerodynamic blades designed to generate a softer, wider cone of airflow with reduced air-chopping noise. It is particularly well-suited for spaces where wide area coverage and lower wind turbulence are desired.
Technical Specifications
Blade Diameter 600mm / 650mm / 750mm (24" / 26" / 30")
Blade Design Wide-Chord Curved Aerofoil Aluminum
Air Volume 175 - 315 m³/min
Motor Power 180W - 350W
Noise Level < 68 dB(A)
Engineering Highlights
- Proprietary wide-blade profile creating broad, non-turbulent airflow distribution
- Lower perceived acoustic noise while maintaining high cubic-feet-per-minute throughput
- Reinforced vibration-damping motor bracket and solid stand mounting
Recommended Applications
- Textile & Apparel Mills
- Auditoriums & Public Event Venues
- Assembly Lines
