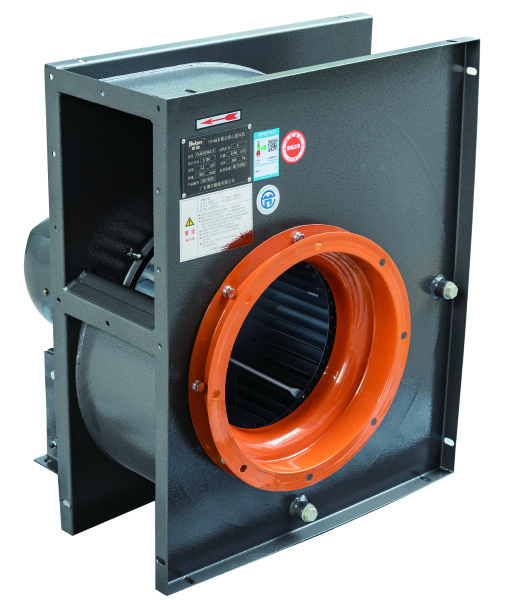

13-48-R3 Series Kitchen Oil Fume Purification Fan

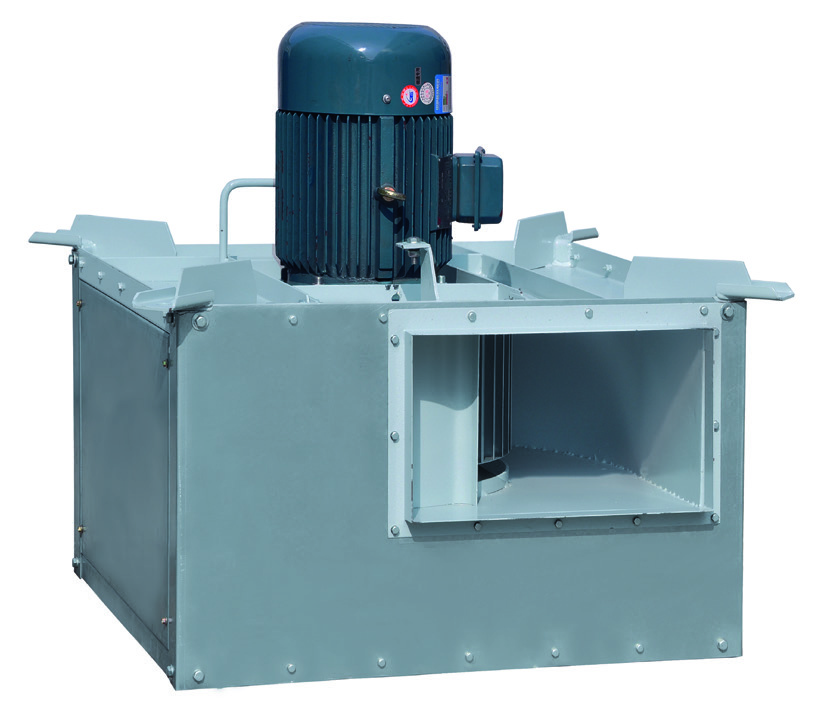

MODEL SERIES: 13-48-R3-A / 13-48-R3-H (Cabinet Type)
The 13-48-R3 Series is engineered specifically for commercial kitchen range hoods and oil-mist extraction. Featuring non-stick forward/radial impellers that resist grease buildup, an external motor out of the oil airstream, and a hinged cleanout door with oil drain plug.
Technical Specifications
Impeller Diameter 280mm - 650mm
Air Flow Capacity 1,500 - 22,000 m³/h
Total Pressure 250 - 950 Pa
Grease Resistance Non-Stick Impeller Profile with Oil Drain
Cleanout Door Quick-Opening Inspection Door with Seal Gasket
Motor Position Isolated External Mount with V-Belt Drive
Engineering Highlights
- Specially profiled anti-fouling impeller preventing grease and oil accumulation
- Quick-access hinged cleanout door allowing thorough pressure washing without disassembling ductwork
- Heavy-duty bottom oil drain plug for collected grease drainage
- External motor mount preventing oil vapors and heat from degrading electrical windings
Recommended Applications
- Hotel & Restaurant Commercial Kitchen Range Hoods
- School, University & Hospital Canteens
- Food Processing & Industrial Frying Facilities
- Machining Oil-Mist & Cutting Fluid Scrubbers
